2800MM Semi Automatic Corrugated Cardboard Folder Gluer Machine
Main Features:
1). This machine suit for folding and gluing all the kind of paperboard.
2). Easy to operate, no training is necessary.
3). Orders can be changed quickly in one minute.
4). It is the best choose for carton making factory.
2800 Type Semi Auto Single Piece Corrugated Carton Folder Gluer Machine
Main structure:
1. Folder gluer machine it is composed of main frame and two small conveyors ;
2. Main frame is composed of lifting work platform,front conveyer equipment,
front gluing equipment,middle conveyer equipment,middle paper pressing equipment
and electrical control equipment.
3. The gluing roller adopts wear-resisting alloy materials, the binder box adopts nylon and wear resistant materials,
both of them are vulnerable components, so the operating workers have to use clean water to wash it cleanly
Working principle:
Put the prepared glue into gluer bucket,press each switch button,when everything is in order.
Turn on the switch below gluer bucket,enable the glue successfully into the head of gluer.
Then well remove carton,so one side of the carton can be well-distributed glue when across bottom of the head gluer while the other side of carton can be firmly joint together after middle press- roll pressing.
| Max size (length+width)*2: | 2800mm |
| Min size (length+width)*2 | 340mm |
| Working speed | 60m/min |
| Max size (width+height) | 1515mm |
| Min size (width+height) | 260mm |
| The height of feeding | 1000mm |
| The weight of machine | 1500kg |
| Power | 4.0 kw |
1. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road.
2. Transportation and various types of weather conditions. A full set of maintenance and operation.
3. Manuals is included.
Product Tags:
|
|

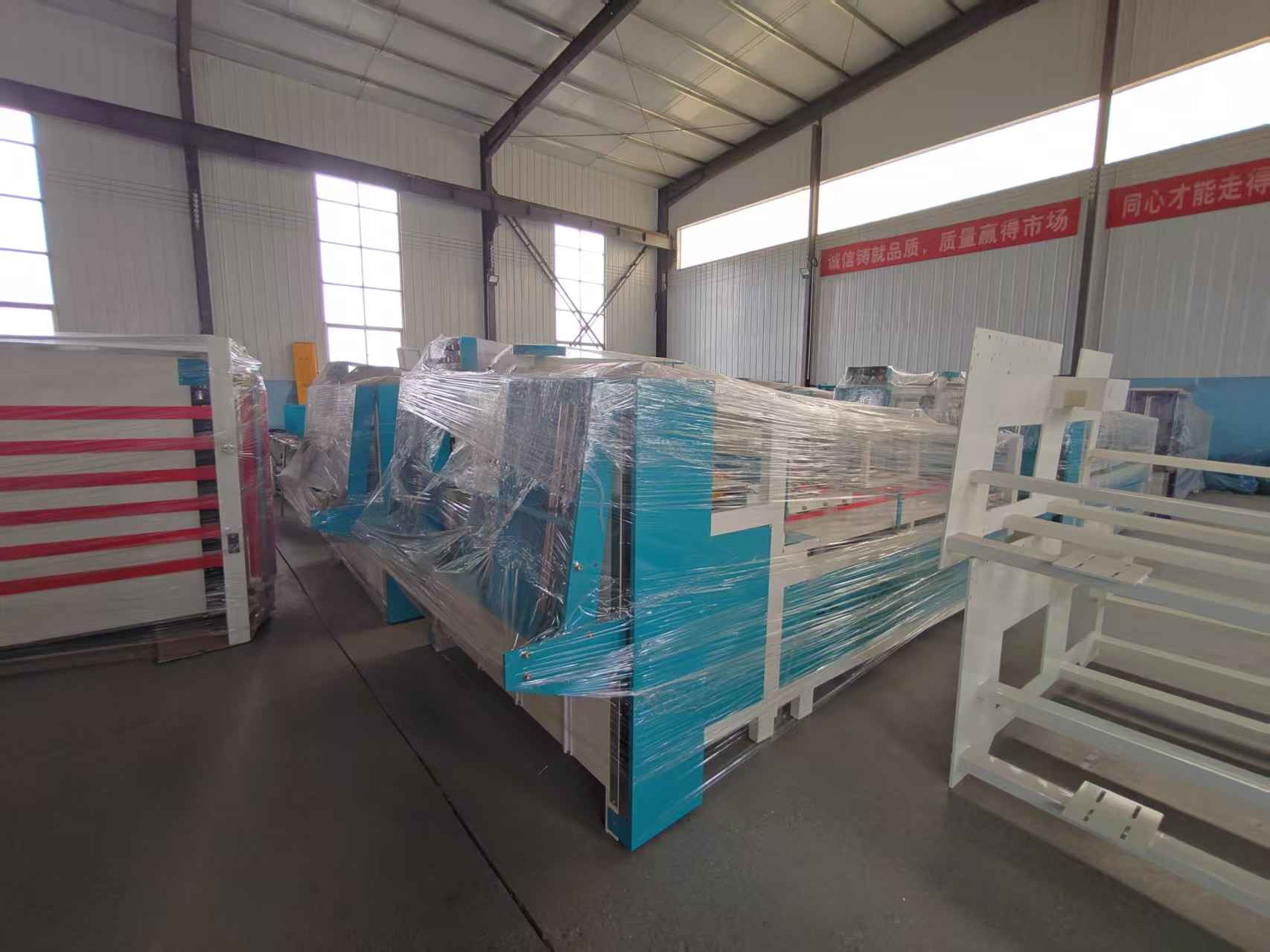

2800MM Semi Automatic Corrugated Cardboard Folder Gluer Machine Images
|
